Thermal oil heaters play a crucial role in solid-state hydrogen storage, solving the thermal management challenges of hydrogen absorption and desorption processes through precise temperature control and efficient heat transfer. The following analysis examines their technical principles, application scenarios, system design, advantages, and challenges:
I. Technical Principles and Core Functions
1. The Core Role of Temperature Control
The hydrogen absorption and desorption reactions of solid-state hydrogen storage materials (such as magnesium-based alloys and rare-earth-based materials) are temperature-sensitive. For example, magnesium-based materials require hydrogen absorption at 200-300℃ and hydrogen release at 300-400℃. Thermal oil heaters provide a stable heat source through circulating hot oil, ensuring the material operates within its optimal temperature range. Studies show that when the inlet temperature of the thermal oil increases from 548K to 573K, the hydrogen storage rate of magnesium-based materials increases from 3.38 g/min to 8.75 g/min, but the rate decreases above 573K, verifying the necessity of precise temperature control.
2. Heat Transfer and Circulation System Design

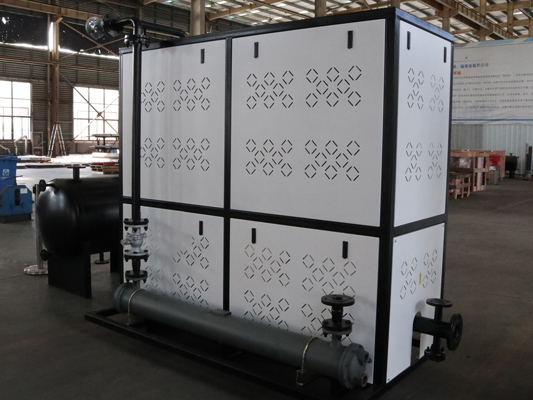

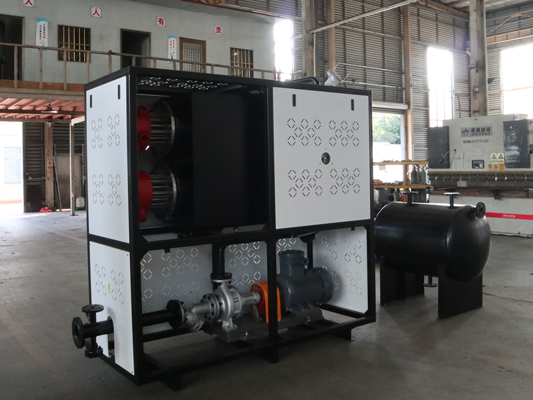

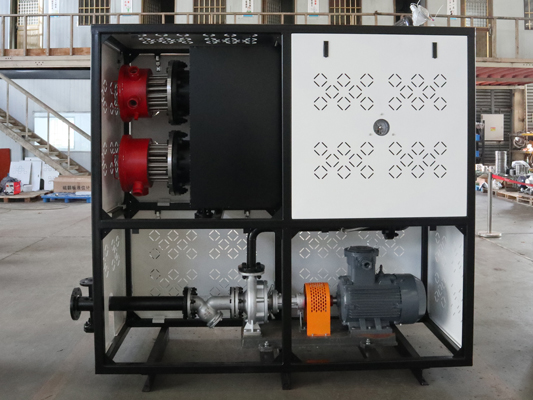

The thermal oil heater operates through a closed-loop system of "heating - circulation - temperature control":
Heating Stage: An electric heater or burner raises the temperature of the thermal oil to the set value.
Circulation Stage: Hot oil enters the hydrogen storage tank through the oil delivery pipe, exchanges heat with the hydrogen storage material, and the absorbed or released heat returns to the furnace body through the return oil pipe.
Temperature Control Stage: A temperature sensor monitors the oil temperature in real time, and the flow rate is adjusted through a three-way valve and a condenser to ensure that temperature fluctuations are controlled within ±1℃.
II. Typical Application Scenarios and Cases
1. Mobile Storage and Transportation Equipment
Integrated design is key for mobile scenarios. For example, a solid hydrogen storage and transportation vehicle integrates the thermal oil heater and hydrogen storage tank on the transport vehicle, avoiding the problem of needing separate heating systems for hydrogen filling and discharging stations in traditional solutions, reducing costs and minimizing leakage risks. This vehicle uses electromagnetic heating technology, achieving a thermal efficiency of 98%, a 50% increase in heating speed, and a single hydrogen filling capacity of up to 1005kg, significantly higher than the 300kg of a high-pressure long-tube trailer. 2. Stationary Hydrogen Storage and Refueling Stations
In integrated skid-mounted hydrogen production-storage-refueling systems, thermal oil heaters heat magnesium-based hydrogen storage tanks via hot oil circulation, achieving low-energy, controllable hydrogen release. A demonstration device developed by a team at Shanghai Jiao Tong University, filled with 1175 kg of porous magnesium-based material, has a single tank hydrogen storage capacity of 75.3 kg and a hydrogen release rate of 7.36 kg/h, and has achieved stable operation at Baowu Group. Furthermore, a solid-state hydrogen storage and transportation refueling station employs a staged refueling design, controlling the temperature of the hydrogen storage tank through a thermal oil heater, combined with high-pressure hydrogen storage components to achieve efficient hydrogen refueling.
3. Renewable Energy Coupling Applications
Temperature oil heaters can be combined with solar and wind power to achieve green energy supply. For example, solar power generation drives nano-rare earth alloy electric heating plates to heat thermal oil for methanol-to-hydrogen and hydrogen storage systems; excess hydrogen can also be used as fuel for supplementary heating.
IV. Advantages and Challenges
1. Significant Advantages
* Wide Temperature Adaptability: Stable operation within a temperature range of -40℃ to 350℃, meeting the needs of various hydrogen storage materials.
* High Safety: The closed-loop system avoids direct contact between hydrogen and the heat transfer oil, which has a high flash point and is non-flammable, reducing the risk of explosion.
* Energy Efficiency and Economy: Compared to electric heating, the hot oil circulation in the heat transfer oil furnace reduces heat loss, resulting in lower long-term operating costs.
2. Major Challenges
* Material Compatibility: Ensuring no chemical reaction between the heat transfer oil and hydrogen storage materials or pipeline materials is necessary to prevent performance degradation.
* Low-Temperature Start-up and Insulation: In cold regions, optimized heating strategies are needed for rapid temperature rise, and insulation layers should be used to reduce heat loss.
* Cost Optimization: The initial investment in advanced technologies such as electromagnetic heating is high; cost reduction requires large-scale application.
V. Future Development Directions
1. Multi-Energy Complementary System
Combining waste heat recovery, energy storage batteries, and other technologies to construct an integrated "production-storage-use" energy network, improving overall energy efficiency.
2. Intelligentization and Digitalization
Introducing AI algorithms to predict hydrogen storage demand and dynamically adjust heat transfer oil flow and temperature to achieve fully automated control of the entire process.
3. Adaptation to Novel Hydrogen Storage Materials
Developing dedicated heat transfer oil furnaces for novel materials such as rare earth-based and titanium-based materials, and exploring thermal management solutions under ultra-high pressure (e.g., 300 GPa).
