40KW Air Circulation Heater for Paint Spray Booth

Short Description:

Electric Air Duct Heaters uses electric power as energy to convert electric energy into heat energy via electric heating element. The heating element of the air heater is a stainless steel heating tube, which is made by inserting electric heating wires into a seamless steel tube, filling the gap with magnesium oxide powder with good thermal conductivity and insulation, and shrinking the tube.


E-mail: elainxu@yanyanjx.com

Product Detail

Product Tags

Product Description

Electric Air Duct Heaters uses electric power as energy to convert electric energy into heat energy via electric heating element. The heating element of the air heater is a stainless steel heating tube, which is made by inserting electric heating wires into a seamless steel tube, filling the gap with magnesium oxide powder with good thermal conductivity and insulation, and shrinking the tube. When the current passes through the high-temperature resistance wire, the heat generated is diffused to the surface of the heating tube through the crystalline magnesium oxide powder, and then transferred to the heated gas to achieve the purpose of heating.

When operating, hot air is circulated in the system through Air Blower,it is a energy efficient alternative to conventional Wood/Coal/Gas heaters. Electric air heater with a wide range: any gas can be heated, the heat produced by the dry air no water, no electric, no combustion, no explosions, no chemical corrosion resistance, no pollution, safe and reliable, fast heated space heating (controlled).

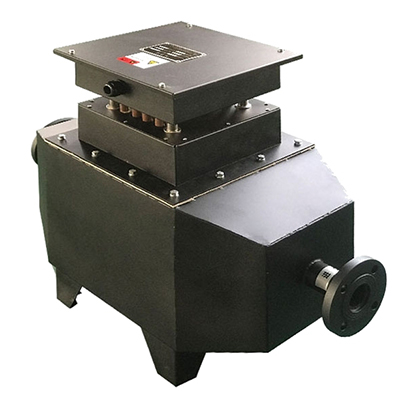

Technical Parameters

Model : YY-FD-40

 Technical Parameters

Voltage: 380V-660V 3Phase 50Hz/60Hz

Wattage: 40KW

Size:1100*500*800mm

Material: Carbon Steel/Stainless Steel

Temperature: -40-350℃

Heat efficiency:≥95%

Application

1. Heat treating

2. Air drying operations

3. Air handling equipment

4. Forced air comfort heating

5. Core drying

6. Fan coils

7. Booster air heater

8. Air pre-heating

9. Terminal reheating

10. Multizone reheating

 11. Heat pump auxiliary systems

12. Return air heating

13. Resistor load banks

14. Annealing

15. In Air Handling Units

16. Heat treating

17. Forced air comfort heating

18. Booster air heater

19. Air drying operations

20. Core drying

21. Air pre-heating

22. Air handling equipment

23. Terminal reheating

24. Multizone reheating

25. Heat pump auxiliary systems

26. Resistor load banks

Application

The key questions which need to be answered before selecting a Finned heater are

1. Could you tell me your using environment?

2. What wattage and voltage will be used?

3. What’s your required temperature?

4. What material do you need?

5. Do you need blower and control cabinet? Any other requirements, feel free to tell us.
