Customized 380V air duct heater with sheath

Short Description:

Air Duct Heater is mainly used for heating the air in the air duct. The common thing in the structure is that the steel plate is used to support the electric heating tube to reduce the vibration of the electric heating tube, and it is installed in the junction box.


E-mail: elainxu@ycxrdr.com

Product Detail

Product Tags

Product Detail

Air Duct Heater is mainly used for heating the air in the air duct. The common thing in the structure is that the steel plate is used to support the electric heating tube to reduce the vibration of the electric heating tube, and it is installed in the junction box. There is an over-temperature control device. In addition to the over-temperature protection in terms of control, an intermodal device is also installed between the fan and the heater to ensure that the electric heater must be started after the fan is started, and a differential pressure device must be added before and after the heater to prevent the fan failure, the gas pressure heated by the channel heater should generally not exceed 0.3Kg/cm2. If you need to exceed the above pressure, please use a circulating electric heater.

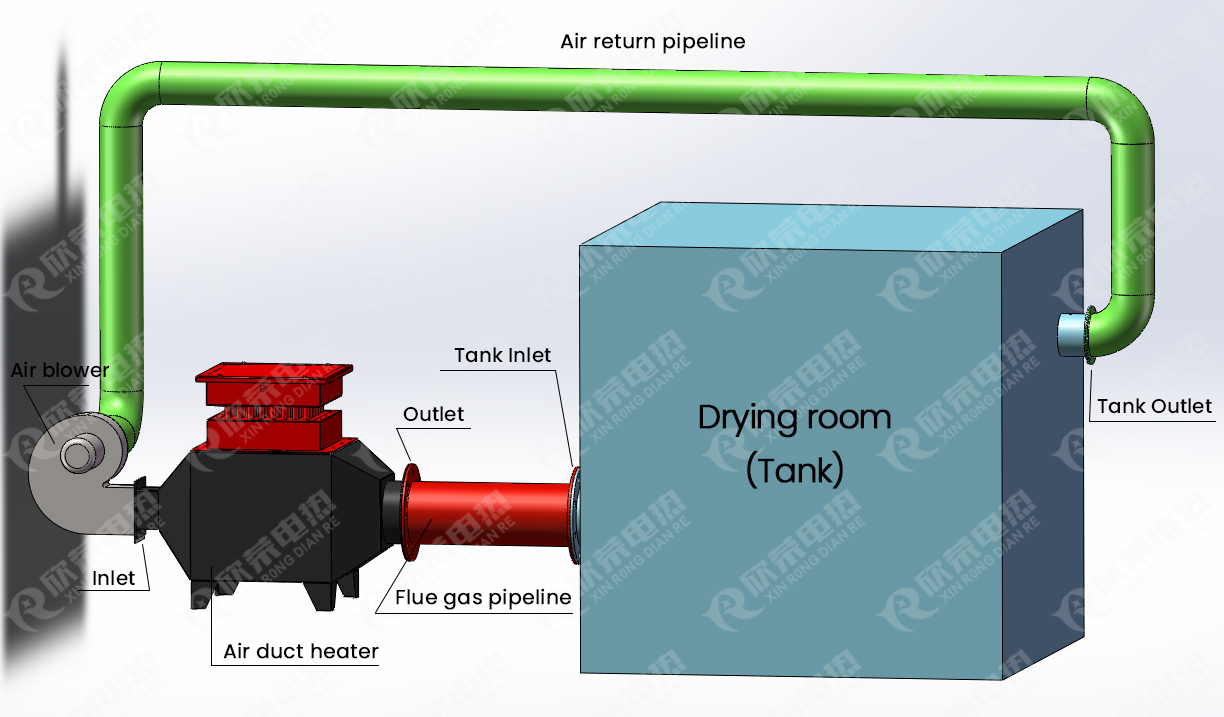

Working Diagram

air duct heaters

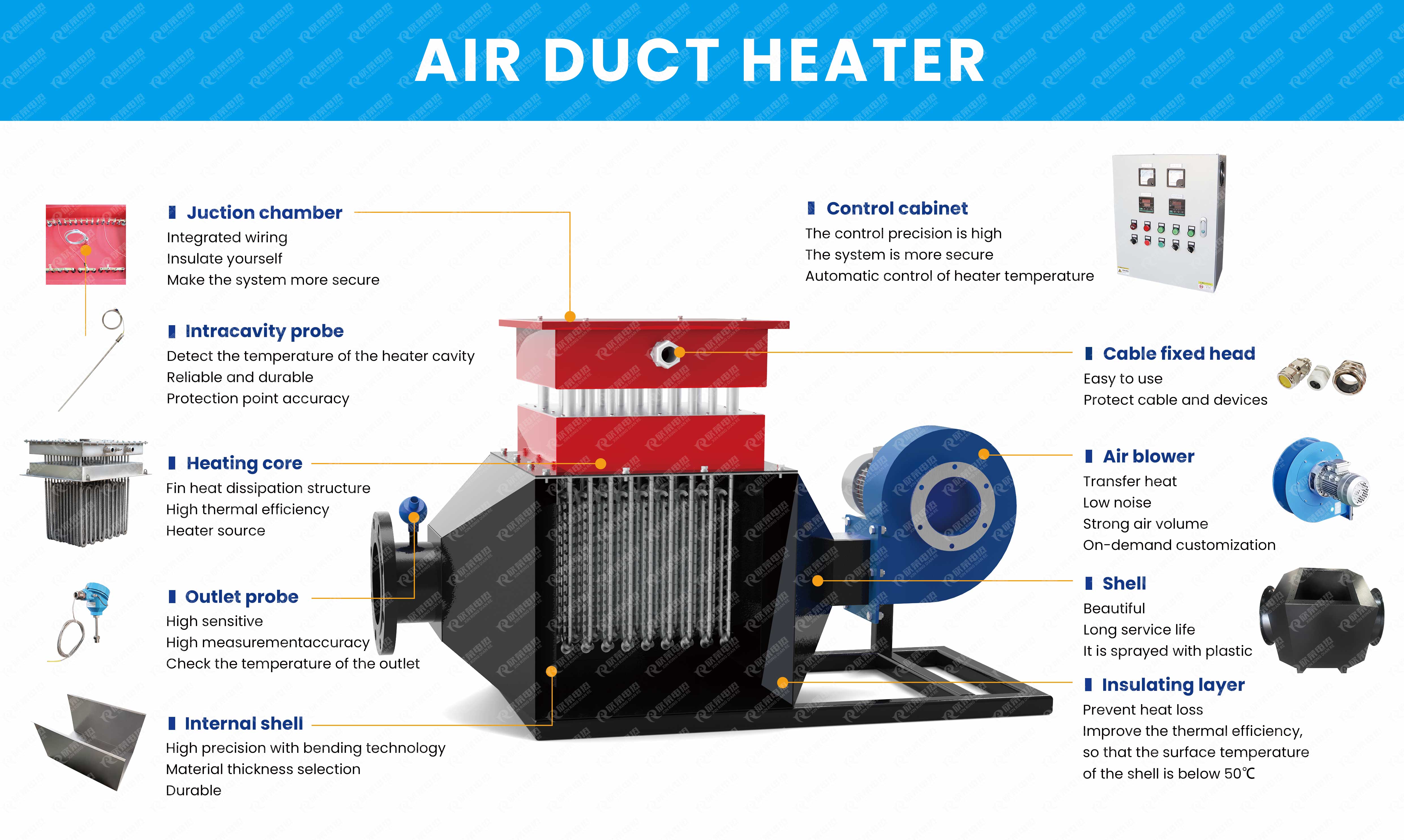

Product Structure

Air duct heater structure
Technical specifications
Model  Power(KW) Size of Heating Romm(L* W* H, mm) Outlet Diameter Power of Blower
SOLID-FD-10 10 300*300*300 DN100 0.37KW
SOLID-FD-20 20 500*300*400 DN200
SOLID-FD-30 30 400*400*400 DN300 0.75KW
SOLID-FD-40 40 500*400*400 DN300
SOLID-FD-50 50 600*400*400 DN350 1.1KW
SOLID-FD-60 60 700*400*400 DN350 1.5KW
SOLID-FD-80 80 700*500*500 DN350 2.2KW
SOLID-FD-100 100 900*400*500 DN350 3KW-2
SOLID-FD-120 120 1000*400*500 DN350 5.5KW-2
SOLID-FD-150 150 700*750*500 DN400
SOLID-FD-180 180 800*750*500 DN400 7.5KW-2
SOLID-FD-200 200 800*750*600 DN450
SOLID-FD-250 250 1000*750*600 DN500 15KW
SOLID-FD-300 300 1200*750*600 DN500
SOLID-FD-350 350 1000*800*900 DN500 15KW-2
SOLID-FD-420 420 1200*800*900 DN500
SOLID-FD-480 480 1400*800*900 DN500
SOLID-FD-600 600 1600*1000*1000 DN600 18.5KW-2
SOLID-FD-800 800 1800*1000*1000 DN600
SOLID-FD-1000 1000 2000*1000*1000 DN600 30KW-2

Application

Air duct heaters are widely used in drying rooms, spray booth, plant heating, cotton drying, air-conditioning auxiliary heating, environmentally friendly waste gas treatment, greenhouse vegetable growing and other fields.

Air duct heater application
