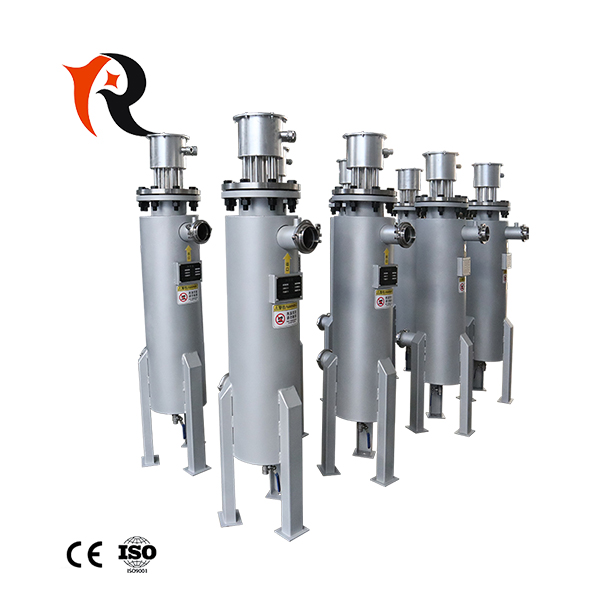

Customized stainless steel vertical type process heater

Short Description:

Stainless steel vertical pipe heater is made of high-quality stainless steel material, with compact structure and vertical installation, which is convenient and practical. It is suitable for various pipeline heating scenarios, such as process flows in chemical, petroleum, food and other industries. Through the intelligent control system, precise temperature control can be achieved to ensure the stability and safety of the production process.

10 years CN supplier

Power Source: electric

Warranty: 1 Year

E-mail: elainxu@ycxrdr.com

Product Detail

Product Tags

Buying Guide

The key questions before ordering a pipeline heater are:

1. What Type do you need?Vertical type or horizontal type?

2. What’s your using environment? For liquid heating or air heating?

3. What wattage and voltage will be used?

4. What is your required temperature? What’s the temperature before heating?

5. What material do you need?

6. How long required to reach your temperature?

Product Detail

Pipeline heaters are electric heating equipment that mainly heats the medium of gas and liquid, and convert electricity into heat energy. The stainless steel electric heating tube is used as the heating element, and there are multiple baffles inside the product to guide the residence time of the medium in the cavity, so that the medium is fully heated and evenly heated, and the heat exchange is improved. The pipeline heater can heat the medium from the initial temperature to the required temperature, up to 500°C.

Technical Parameters
Item Number	Electric Pipeline Heater
Material	Carbon Steel/ Stainless Steel
Size	Customized
Processing temperature	0-500 degree celsius
Heating Medium	Gas and Oil
Heat efficient	≥ 95%
Heating Element Material	Stainless steel 304
Thermal insulation layer	50-100mm
Connecting box	Non ATEX connecting box, Explosion-proof connecting box
Control Cabinet	Contactor control; SSR; SCR

Working Diagram

High Power Vertical Type Pipeline Heater

Pipeline heater's working principle is: cold air (or cold liquid) enters the pipeline from the inlet, the inner cylinder of the heater is in full contact with the electric heating element under the action of the deflector, and after reaching the specified temperature under the monitoring of the outlet temperature measurement system, it flows from the outlet to the specified piping system.

Advantage

* Flange-form heating core;
* The structure is advanced ,safe and guaranteed;
* Uniform, heating,thermal efficiency up to 95%
* Good mechanical strength;
* Easy to install and disassemble
* Energy saving power saving,low running cost
* Multi point temperature control can be customized
* The outlet temperature is controllable

Application

Pipeline heaters are widely used in automobiles, textiles, printing and dyeing, dyes, papermaking, bicycles, refrigerators, washing machines, chemical fiber, ceramics, electrostatic spraying, grain, food, pharmaceuticals, chemicals, tobacco and other industries to achieve the purpose of ultra-fast drying of the pipeline heater.
Pipeline heaters are designed and engineered for versatility and are capable of meeting most applications and site requirements.

Electric Heating Equipment for Heavy Oil Heating1

FAQ

1. Q: Are you factory or trading company?
A: Yes, we are factory and have 8 production lines.

2. Q: What's the shipping method?
A: International express and sea transportation, depend on customers.

3. Q: Can we use our own forwarder to transport the products?
A: Yes, sure. We can ship to them.

4. Q: Can we print our own brand?
A: Yes, of course. Will be our pleasure to be one your good OEM manufacture in China to meet your requirements.

5. Q: What's the payment method?
A: T/T, 50% deposit before production, the balance before delivery.
Also, we accept go through on alibaba, west union.

6. Q: How to place an order?
A: Please kindly send us your order by email, we will confirm the PI with you. We wish to get your email address, phone number, destination, transportation way. And product information, size, quantity, logo, etc.
Anyway, please contact us directly by email or online message.
