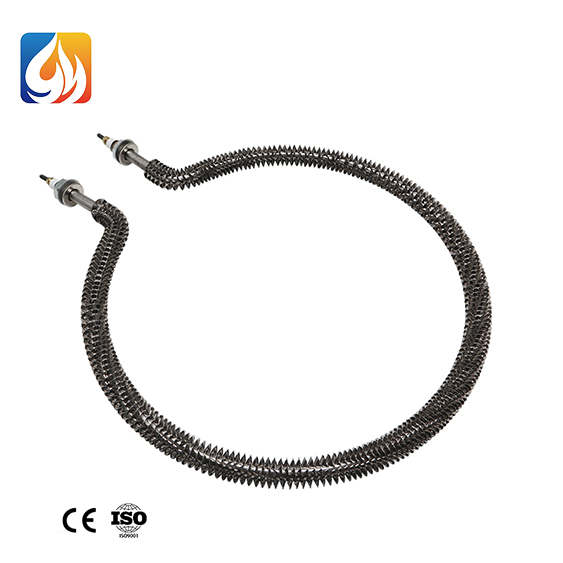

Industrial Electric Customized Finned Tubular Air Heater for Food Dehydrator

Short Description:

Finned heaters are highly efficient and common heating elements widely used in industrial and medium to large commercial food dehydration equipment, are used as part of the heat exchanger in dehydrators to heat air, accelerate water evaporation, or cool dehydrated materials, assisting the dehydrator in the dehydration process.

E-mail: kevin@yanyanjx.com

Product Detail

Product Tags

Performance characteristics

1. Extremely high thermal efficiency: The fins greatly increase the heat dissipation area, allowing heat to be quickly and fully carried away by the air, resulting in lower energy consumption and faster heating speed.

2. Uniform heating: The generated hot air flow is more stable and uniform, avoiding local overheating or insufficient heating, and ensuring the consistency of food dehydration quality.

3. High mechanical strength: The metal tube and fin structure is robust, resistant to vibration and shock, and has a long service life, making it particularly suitable for industrial-grade continuous production environments.

4. Safety and reliability: The heating wire is completely sealed inside a metal tube, isolated from air, thus avoiding the risks of oxidation and short circuits, and also preventing contact with possible dust and oil stains inside the equipment that could cause fires.

5. The power can be made very large: By increasing the number of tubes, length and fin density, it is easy to achieve heating power of several kilowatts or even tens of kilowatts, meeting the demands of large-scale dewatering machines.

6. Precise temperature control: When used in conjunction with temperature controllers (such as PID controllers) and solid-state relays (SSR), it can achieve extremely precise temperature control, which is crucial for the optimal drying temperature of different ingredients.

Technical Date Sheet:

Item	Finned Tubular Air Heater for Food Dehydrator
tube diameter	8mm~30mm or customized
Heating Wire Material	FeCrAl/NiCr
Voltage	12V - 660V, can be customized
Power	20W - 9000W, can be customized
Tubular material	Stainless steel /Incoloy 800
Fin Material	Stainless steel 201/304
Heat efficiency	99%
Application	Air heater, oven, dehydrator, air duct heater and other industry heating process

Product details

1. Stainless steel 304 heating tube, temperature resistance of 300-700C, stainless steel material can be selected according to the operating environment temperature, heating medium, etc;

2. Imported magnesium oxide powder is selected, which has the characteristics of high temperature resistance and good insulation performance, making it more reliable to use;

3. High quality electric heating wire is used, which has the characteristics of uniform heat dissipation, high temperature and oxidation resistance, and good elongation performance;

4. Factory direct supply, stable supply, complete specifications, diverse types, and support for non-standard customization;

Working Principle

Finned tubular heaters increase the outer or inner surface area of the heat exchange tube by adding fins to the surface of the heat exchange tube, thereby improving the heat exchange efficiency. This design not only improves the heat transfer efficiency, but also increases the heat dissipation area. Finned tubes are easy to install, reduce the number of connection points, reduce the chance of water leakage, are easy to maintain, and have a long service life.

Product use instructions

★Do not in outdoor environments with high humidity.

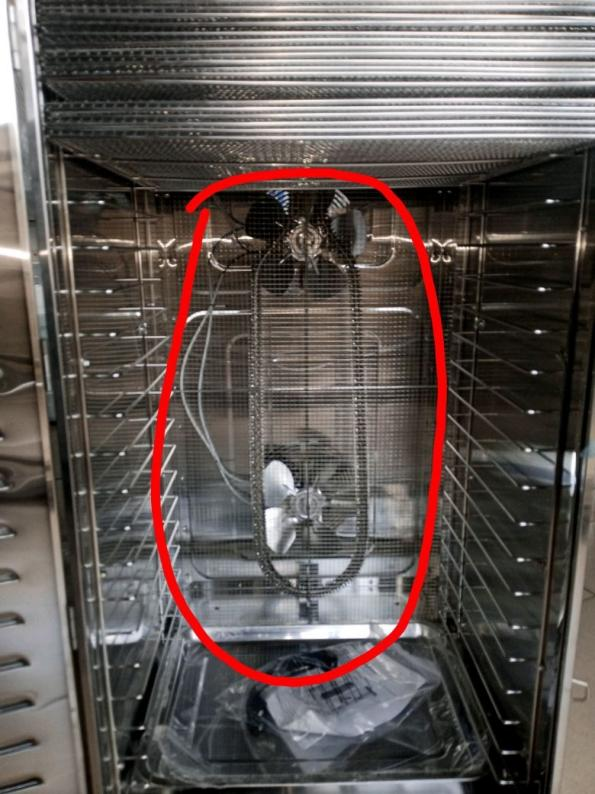

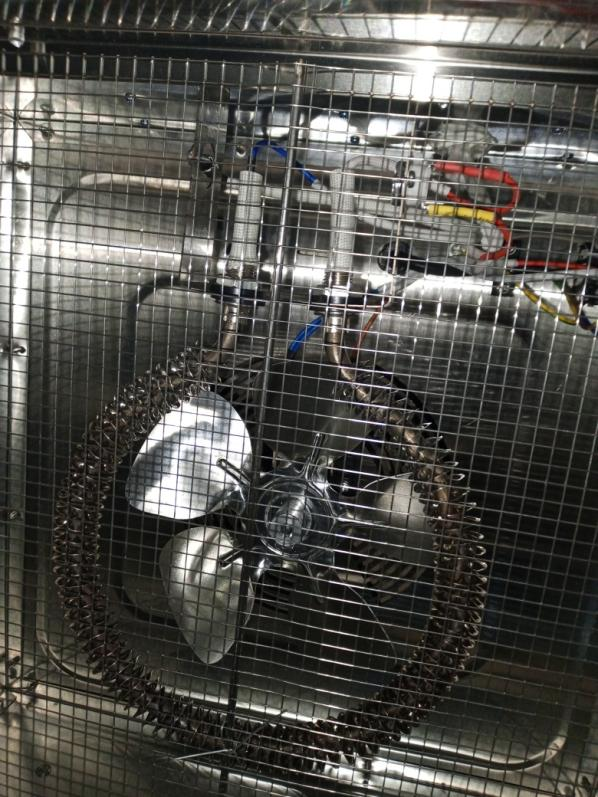

★When the dry burning electric heating tube heats the air, the components should be arranged evenly and crisscrossed to ensure that components have good heat dissipation conditions and that the air passing through can be fully heated.

★The default material for stock items is stainless steel 201, the recommended operating temperature is <250°C. Other temperatures and materials can be customized, with stainless steel 304 selected for temperatures below 00°C and stainless steel 310S selected for temperatures below 800°C.

Application fields

Heating and cooling equipment: It is widely used in equipment such as hot air furnaces, radiators, and air conditioners. Inators and air conditioners, it can quickly dissipate the heat inside the equipment, ensuring the normal operation of the equipment.

Industrial field: It is also widely used petrochemical, electric power, metallurgical and other fields, such as heat recovery of economizer, air preheater and waste heat boiler.

Drying and ventilation system: SRQ finned tube radiator is composed of steel porous plate frame and steel finned tube radiator, which is widely used in air heating of drying system and heating ventilation exchange system of large and medium sized.
