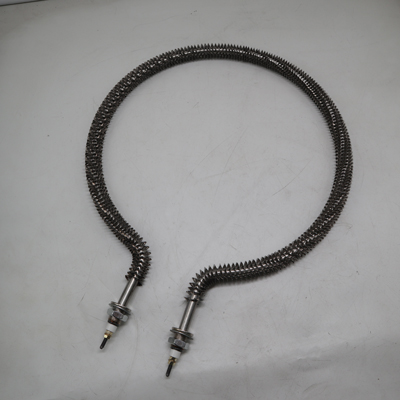

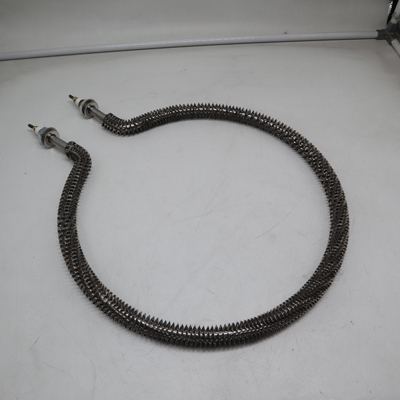

Industrial Electric Finned heating tube for air conditioning

Short Description:

Finned heating tubes are critical components in air conditioning (AC) systems, enhancing heat transfer efficiency by increasing the surface area exposed to airflow. They are widely used in HVAC units, heat pumps, and industrial air handlers. Below is a detailed breakdown of their features, types, and applications based on industry-leading products.

E-mail: kevin@yanyanjx.com

Product Detail

Product Tags

Product Introduction

Technical Date Sheet:

Item	Electric Air Finned Tubular Heater Heating Element
tube diameter	8mm~30mm or customized
Heating Wire Material	FeCrAl/NiCr
Voltage	12V - 660V, can be customized
Power	20W - 9000W, can be customized
Tubular material	Stainless steel/Iron/Incoloy 800
Fin Material	Aluminum/Stainless steel
Heat efficiency	99%
Application	Air heater, used in oven and duct heater and other industry heating process

Product Features

A. High Heat Transfer Efficiency

Extended Surface Area: Fins (typically aluminum or stainless steel) increase heat exchange by 3-5x compared to bare tubes .

Optimized Airflow: Designed for minimal air resistance while maximizing thermal transfer .

B. Durability & Corrosion Resistance

Materials:

Stainless Steel (304/316): Resists oxidation and moisture damage .

Incoloy (800/840): For high-temperature applications (>500°C) .

Polished/Coated Finishes: Prevent fouling and improve longevity .

C. Customizable Designs

Fin Types:

L-Foot Finned Tube: Secure mechanical fit, ideal for high-vibration environments .

Extruded Fins: Seamless bond with base tubes for superior heat conduction .

Sizes: Diameters from **8-51 mm, fin heights up to 17 mm .

Product details

1. Stainless steel 304 heating tube, temperature resistance of 300-700C, stainless steel material can be selected according to the operating environment temperature, heating medium, etc;

2. Imported magnesium oxide powder is selected, which has the characteristics of high temperature resistance and good insulation performance, making it more reliable to use;

3. High quality electric heating wire is used, which has the characteristics of uniform heat dissipation, high temperature and oxidation resistance, and good elongation performance;

4. Factory direct supply, stable supply, complete specifications, diverse types, and support for non-standard customization;

Product use instructions

★Do not in outdoor environments with high humidity.

★When the dry burning electric heating tube heats the air, the components should be arranged evenly and crisscrossed to ensure that components have good heat dissipation conditions and that the air passing through can be fully heated.

★The default material for stock items is stainless steel 201, the recommended operating temperature is <250°C. Other temperatures and materials can be customized, with stainless steel 304 selected for temperatures below 00°C and stainless steel 310S selected for temperatures below 800°C.
