The flue gas air duct heater is a specialized electric heating device in industrial flue gas treatment systems, primarily suitable for desulfurization, denitrification, whitening elimination, and exhaust gas pretreatment processes in industries such as power plants, chemical, metallurgical, and waste incineration sectors. It serves as a core auxiliary equipment for ensuring industrial environmental compliance and stable production conditions. This device operates on the principle of forced convective heat transfer in air ducts, specifically designed for flue gas conditions with dust content, mild corrosion, and significant temperature fluctuations. It can precisely raise flue gas temperatures, addressing industry challenges like low efficiency in low-temperature flue gas environmental treatment and equipment condensation corrosion. With its high efficiency, stability, and durability, it is widely used in various industrial exhaust gas treatment production lines.
The core working principle of the flue gas duct heater is the conversion of electrical energy to thermal energy and forced convective heat transfer. When powered, the internal finned electric heating elements generate Joule heat, efficiently converting electrical energy into thermal energy. The low-temperature flue gas flowing through the duct rapidly passes over the heating element surface under the action of the fan's air pressure, completing heat exchange through conduction and convection, achieving uniform temperature rise of the flue gas. Compared to traditional heat exchange equipment, it features rapid temperature response, enabling quick constant temperature regulation. It can adjust heating power in real-time according to process requirements, preventing issues such as denitrification catalyst failure due to excessively low flue gas temperature, duct condensation, and dust adhesion blockage, ensuring stable and continuous operation of subsequent environmental protection processes.

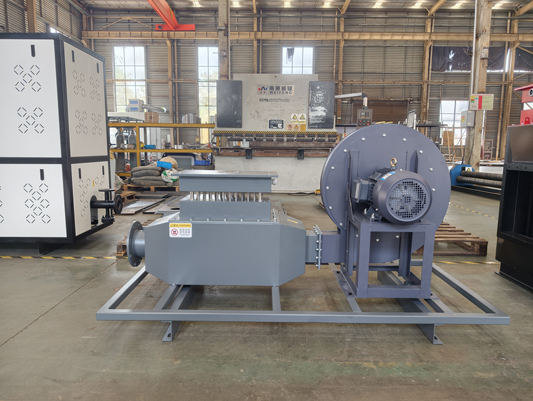

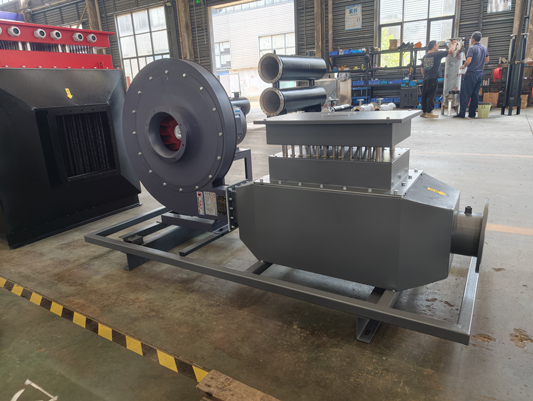

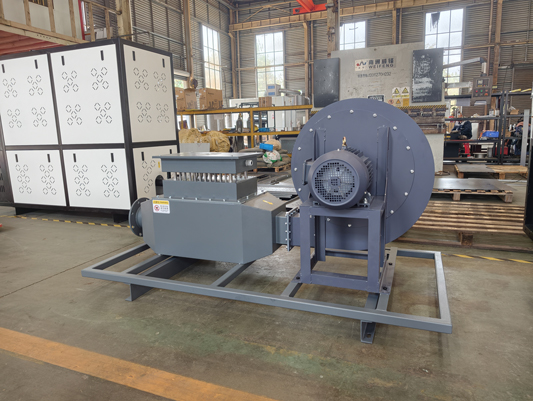

In terms of structural design, the flue gas duct heater adopts an integrated modular structure, primarily consisting of high-temperature and corrosion-resistant heating elements, equipment housing, intelligent temperature control system, thermal insulation protective layer, and shock-absorbing fixation components. The heating core employs 304, 316L, or 310S stainless steel finned electric heating tubes, which significantly expand the heat exchange area through precision-wound corrugated fins to enhance heat transfer efficiency while accommodating complex operating conditions such as mild flue gas corrosion and high-temperature operation. The housing is constructed with thickened steel plates sealed and welded, ensuring exceptional sealing performance to effectively prevent flue gas leakage. The equipment features multi-layer safety protection structures, paired with functions such as overheating alarms, overload power cut-off, and leakage protection, effectively mitigating faults like dry burning and overheating damage, making it suitable for long-term continuous industrial operation. The external high-density insulation layer minimizes heat loss to the greatest extent, improving overall thermal energy utilization.
Compared to conventional air duct heating equipment, the flue gas air duct heater offers significant performance advantages. Firstly, it boasts extremely high thermal efficiency, with finned heat exchange enhancement and low air resistance optimization design enabling thermal efficiency exceeding 95%, delivering outstanding energy savings—approximately 15% more efficient than traditional bare tube heating equipment. Secondly, it exhibits exceptional adaptability, featuring three models (low, medium, and high temperature) capable of meeting flue gas heating requirements across 160°C to 500°C ranges, suitable for various flue gas treatment processes. Thirdly, it demonstrates strong operational stability, with structural optimizations for dust-laden flue gas characteristics to prevent ash accumulation and blockages. Additionally, it is equipped with vibration-damping supports to reduce operational vibration losses, effectively extending equipment lifespan. Lastly, it achieves high temperature control precision, with an intelligent temperature regulation system that continuously monitors flue gas temperature and automatically adjusts heating power, minimizing temperature deviations to ensure stable process conditions.
This device has a wide range of application scenarios, primarily used for preheating flue gas denitrification in thermal power plants, waste gas desulfurization and temperature increase in chemical plants, white smoke elimination treatment in waste incineration plants, and pre-treatment of flue gas in metallurgical furnaces for environmental protection purposes. It can also be adapted to industrial air duct ventilation heating and constant-temperature heating of process airflow in production processes. With increasingly stringent environmental standards, issues such as insufficient reactions in low-temperature flue gas and low operational efficiency of environmental protection equipment frequently arise. The flue gas duct heater can effectively raise the flue gas treatment temperature, ensuring complete denitrification and desulfurization reactions, and helping enterprises meet emission standards.
To ensure the long-term stable operation of equipment, daily maintenance must follow standardized procedures. Before operation, check the air duct for blockages and circuit seal integrity to prevent debris from obstructing airflow. During operation, avoid overheating or overloading, and regularly clean dust and smoke deposits on heating elements to prevent reduced heat exchange efficiency or overheating failures. After shutdown, implement moisture and corrosion protection measures, periodically verify the accuracy of temperature control and protection systems, and promptly replace aging components. Proper maintenance methods can effectively reduce equipment failure rates, extend service life, and lower production and maintenance costs for enterprises.
In summary, the flue gas duct heater, with its advantages of high energy efficiency, precise temperature control, strong adaptability to working conditions, and safety and stability, has become an indispensable key equipment in industrial flue gas environmental protection treatment. It not only addresses the technical challenges of low-temperature flue gas treatment but also aligns with the trend of industrial energy conservation and consumption reduction, providing solid support for environmentally friendly production and stable operation of industrial enterprises.
