B S R K type thermo couple platinum rhodium thermocouple

Short Description:

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.






E-mail: elainxu@ycxrdr.com

Product Detail

Product Tags

Key attributes

Customized support OEM, ODM
Place of Origin Jiangsu, China
Brand Name XR
Model Number thermocouple sensor
Product name B S R K type thermo couple platinum rhodium thermocouple
Type K,N,E,T,S/R
Wire diameter 0.2-0.5mm
Wire material: Platinum Rhodium
Length 300-1500mm (customization)
Tube material corundum
Measuring temperature 0~+1300 C
Temperature tolerance +/-1.5C

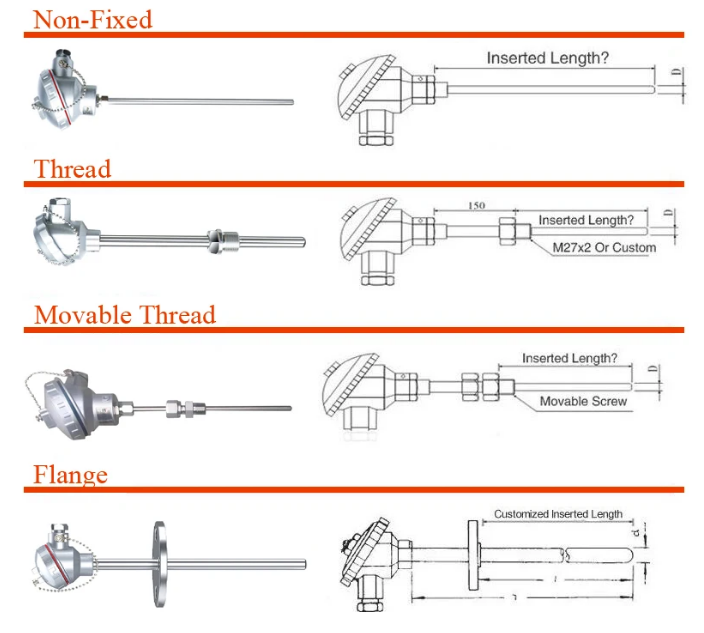

Fixing thread/flange/none
MOQ 1pcs


Packaging and delivery

Packaging Details Plastic bags,cartons and wooden cases;
Selling Units: Single item
Single package size: 70X20X5 cm
Single gross weight: 2.000 kg

Product Paramenters

Item Thermocouple
Type K/N/J/E/T/PT100
Measuring Temperature K 0-600C
Screw Size M27*2 or customized
Tube Diameter 16mm or customized
Material Stainless steel 304

Thermocouple as measure temperature sensor, and usually display meter, recording meter and
electronic regulator, at the same time, also can be used as a prefabricated thermocouple temperature
sensing element, it can be directly measured from 0 ℃ ~ 800 ℃ in the process of various production
within the scope of the liquid, steam and gas medium, as well as the temperature of the solid surface.

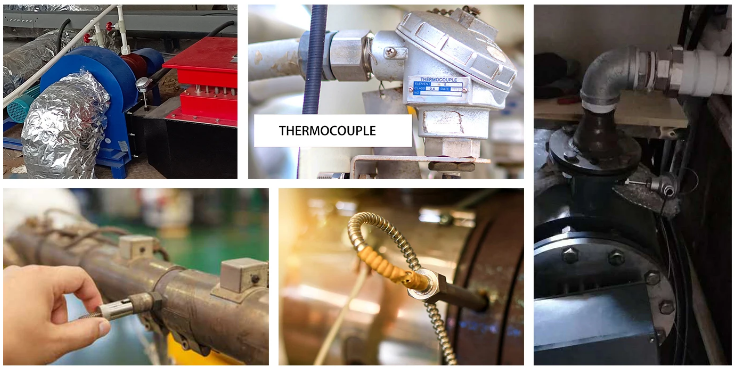

Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
