Customized Electric Screw Type Water Heating Rod With Thermostat

Short Description:

Screw Type Water Heating Rod With Thermostat consist of the screw type water heating rod and temperature controller, The knob temperature control is connected to the heating part through a temperature measuring tube to sense the temperature of the heated medium, and automatically turns on or off the power supply of the heating tube according to the temperature value set by the user, so as to maintain the medium temperature near the set point.

E-mail: kevin@yanyanjx.com

Product Detail

Product Tags

Product Description

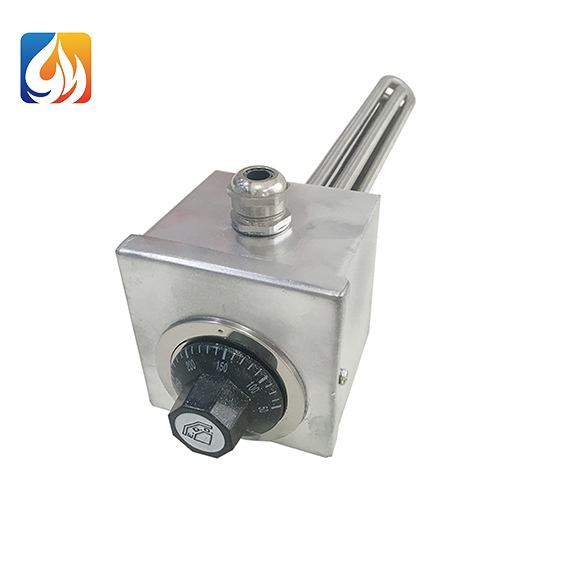

Screw Type Water Heating Rod With Thermostat is a threaded installation type (threaded) electric heating tube that integrates a knob temperature controller, especially suitable for situations where it needs to be directly installed on tanks, pipelines, or containers for liquid heating and requires manual temperature adjustment and control on site.

Type	Immersion Heater
Power Source	Electric
Voltage	220V/240V/380V or customized
Warranty	6000H
Material	Stainless steel
Temperature	0 - 400 ℃
Dimension(LWH)	Custom Size
Core Components	heating wire
Wattage Density	2-30W/cm2
Heating Wire	NiCr80/20

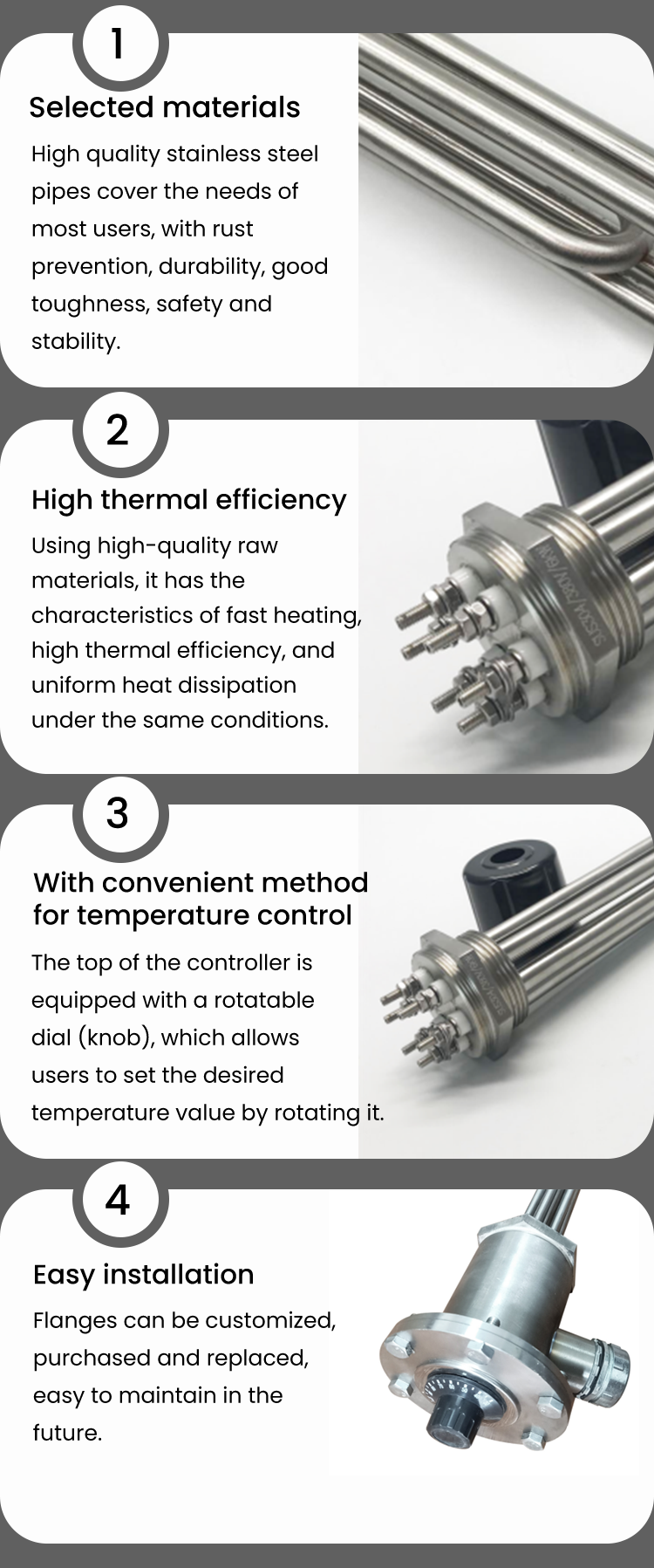

Product Advantage

Factory direct sales, specifications and sizes can be customized according to drawings.

Products use high-quality raw materials to ensure product quality.

Product factory professional inspection.

Support professional after-sales service to solve customers' worries.

Detail presentation

Product details

Connection mode

1. All kinds of heaters, such as electric water furnace, water boiler, steam furnace, air energy, solar

energy,auxiliary heating of engineering water tank, chemical pool, bathing pool, swimming pool,incubator, etc.

2. Heavy oil heater of heavy oil burner.

3.Heaters for any liquid in various industrial chemicals

Installation method

How to order

Please show us following important points when you need custom service:
· voltage(V), power(W) ,phase .

· Quantity , shape and size(tube diameter, immersion length,flange size,etc)

· sheath material.

· temperature control.

·explosion - proof.

· If you have drawing or product picture,or sample in hands,will be much better and helpful for exact price calculation.

Application

professional selection,stable performance and more accurate,suitable for chemical industry

aquaculture ,food ,packing ,medical electronic and other industries with temperature control equipment

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: Do you provide samples ?
A: Yes, regular sizes are available in stock in free charge.
Q3. Can you produce according to the samples? ?
A: Yes, we can produce by your samples or technical drawings. We can build the molds
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery for 3times.
Q5. After-sales service
A: If you find any broken products in mass quantity, we will produce again or compensate money directly and offer discount in next
order.We can sign the quality agreement when order confirmation. So we must make sure quality for you.
