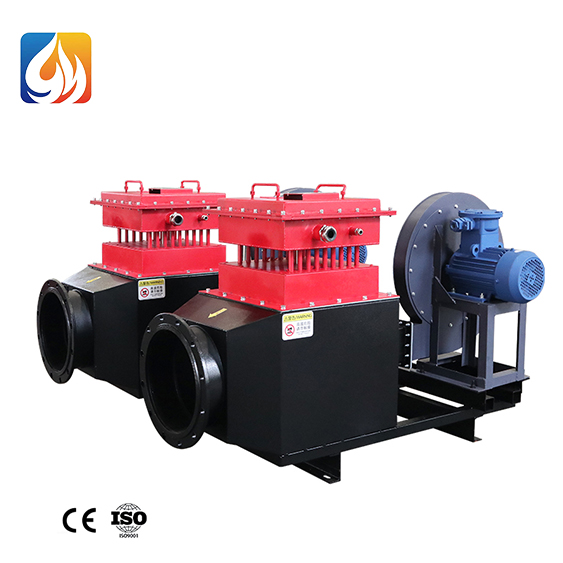

High Efficiency Industrial electric Air Duct heater for coating line

Short Description:

Air Duct Heater is a crucial heating device in the field of industrial painting (such as automotive, home appliances, furniture, hardware, etc.), mainly used for precise and efficient heating of the air sent into paint spraying rooms, baking rooms, or curing ovens.

E-mail: kevin@yanyanjx.com

Product Detail

Product Tags

Product Introduction

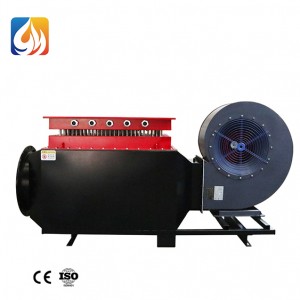

Air Duct heater for coating line is a heating device installed in the air supply duct. It uses electrical energy as a heat source to heat the air flowing through the pipeline through internal electric heating elements (usually electric heating tubes), providing stable and clean hot air for the coating process.

Working principle

Start condition: The blower is started, and air flow is generated in the air duct. Then open the heating part.

Heating process: The control system compares the set target temperature with the actual temperature feedback from the temperature sensor, and controls the solid-state relay to output the corresponding power to the electric heating tube through PID calculation.

Heat exchange: Cold air is forced to flow through the surface of the electrically heated electric heating tube by the fan, and undergoes sufficient heat exchange, resulting in an increase in temperature.

Accurate temperature control: The PID controller continuously compares and fine tunes, ensuring that the exhaust temperature remains stable within the set required range with minimal fluctuations.

Security protection: In case of abnormal situations such as temperature exceeding the limit and etc., the protection system will immediately cut off the power and sound an alarm.

Technical Parameters

Parameters Specification range

Power 1kW～1000kW (customized)

Temperature control accuracy ±1℃～±5℃ (higher accuracy optional)

Maximum operating temperature ≤300℃

Power supply voltage 380V/3N~/50Hz (customized other voltages)

Protection level IP65 (dustproof and waterproof)

Material Stainless steel heating tube + ceramic fiber insulation layer

Technical Date Sheet

Product details display

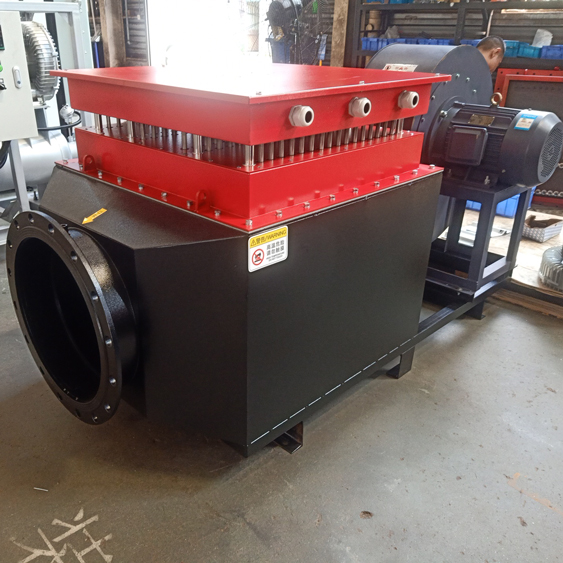

Composed of electric heating elements, centrifugal fan, air duct system, control system, and safety protection

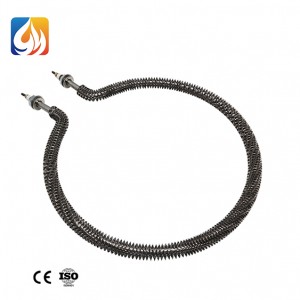

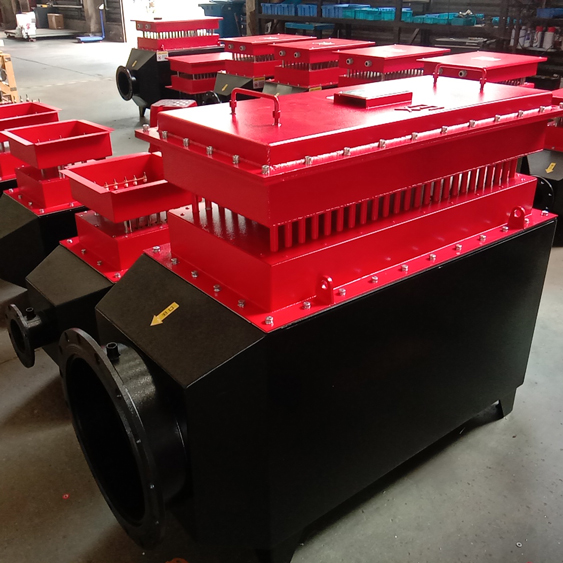

1. Electric heating element: core heating component, common materials: stainless steel, nickel chromium alloy, power density is usually 1-5 W/cm ².

2. Centrifugal fan: drives air flow, with an air volume range of 500~50000 m ³/h, selected according to the volume of the drying room.

3. Air duct system: Insulated air ducts (material: stainless steel plate+aluminum silicate cotton, temperature resistant to 0-400 ° C) to ensure efficient heat transfer.

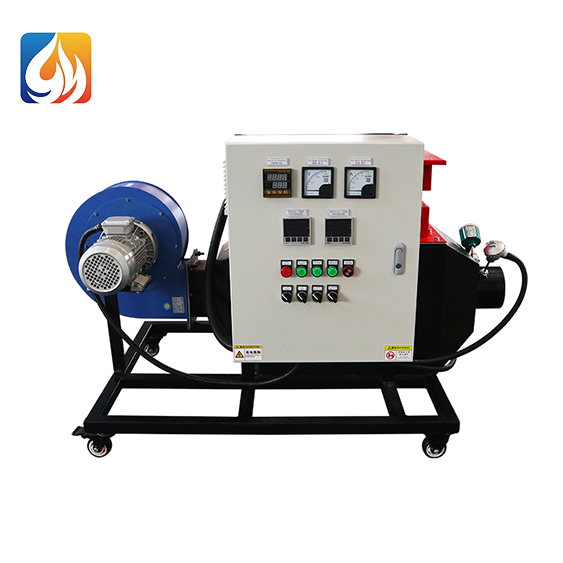

4. Control system: contactor control cabinet/solid-state control cabinet/thyristor control cabinet, supporting multi-stage temperature control and alarm protection (over temperature, lack of air, overcurrent).

5. Safety protection: Overheating protection switch, explosion-proof design (Ex d IIB T4, suitable for flammable environments).

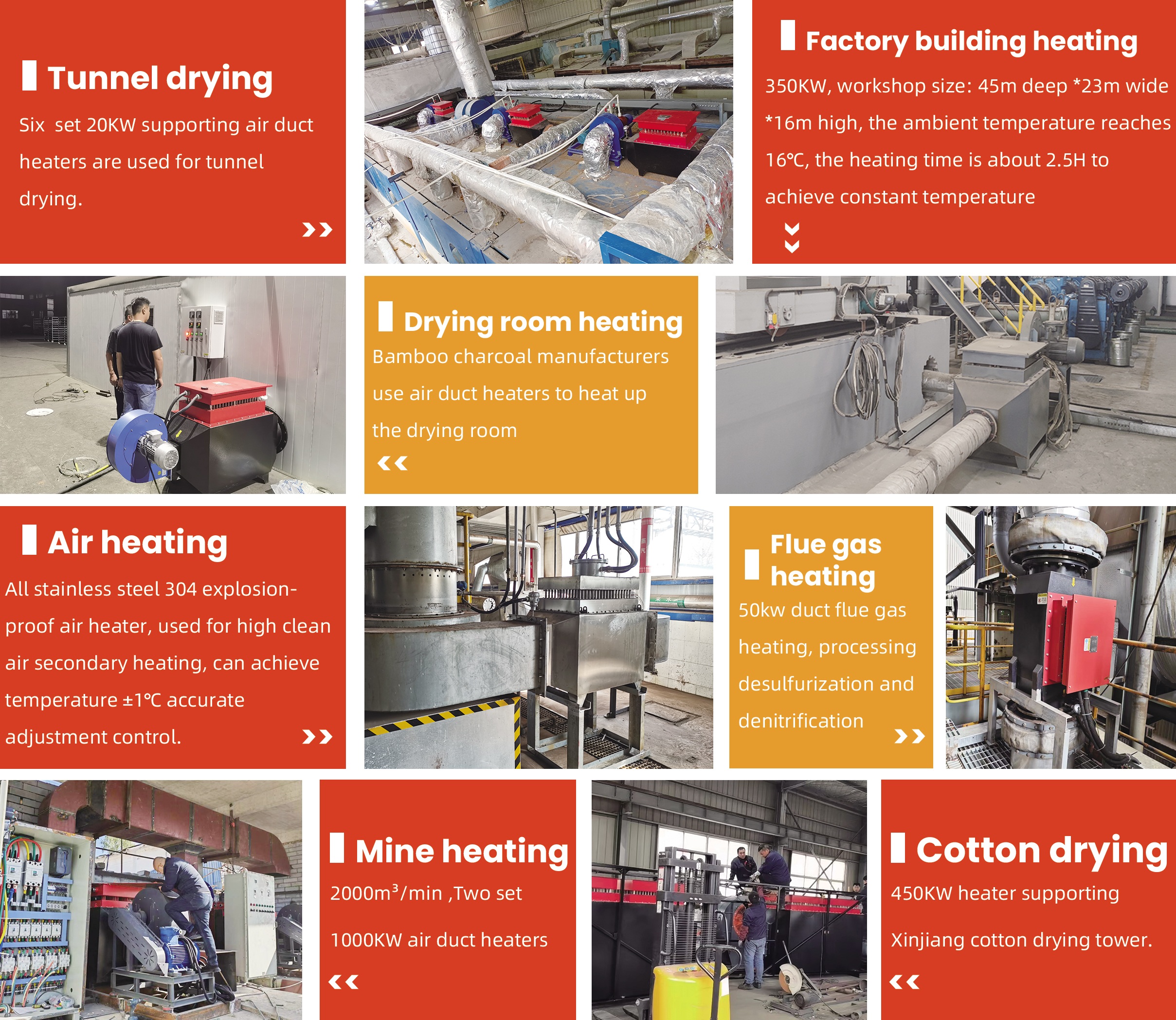

Core function

Preheating air: In winter or low temperature environments, heat the inhaled cold air to the initial temperature required by the process.

Process heating: providing heat for the constant temperature and humidity environment of the paint spraying room, or providing high-temperature hot air for the baking room/curing furnace, to quickly cure paints, powder coatings, etc.

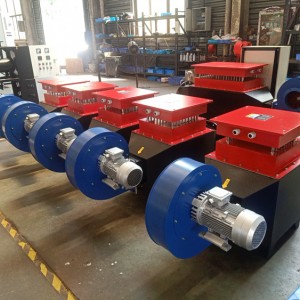

Product Advantage

1.Authentic materials, simple and elegant appearance; The product is carefully selected, with a simple structure, small size, light weight, high mechanical performance and strength;

2.The product has stable performance, simple operation, low cost, easy installation, and convenient maintenance;

3.The product structure design is reasonable and can be customized according to the drawings;

4.Multiple specifications, quality assurance.
